The 747-8 cabin experience
The 747-8 cabin uses 787-derived architecture — curved ceilings, larger windows and LED lighting — in the quietest 747 cabin Boeing built.
The 747-8’s cabin was where Boeing applied what it had learned on the 787, and it is the part of the aircraft passengers actually notice.
What changed

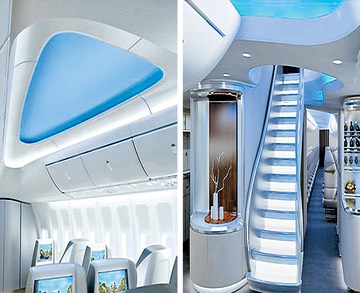

The ceiling is sculpted and curved, and the overhead bins are designed to look as though they are attached to it rather than cut into it — the same visual trick used on the 787, which makes the cabin feel taller and wider than the numbers suggest.
The windows are around 16 percent larger than those on the 747-400, closer in size to those on the 777 and 767-400ER.
Lighting is solid-state LED throughout. Because the colour can be varied, cabin crew can run a lighting programme across a long flight — daylight tones at boarding, warm sunset shades at dinner, low blue light overnight — which is intended to make the passage of time feel less abrupt on very long sectors.
Quiet
Boeing described the 747-8 cabin as the quietest of any 747. Part of that comes from the GEnx engines and their chevron nacelles; part from cabin insulation. Lufthansa went further with its first-class cabin, using suede wall and floor surfaces to absorb sound, and marketed it as the quietest first-class cabin in the world.
The staircase
One small change carries a lot of the aircraft’s character. On the 747-300 and 747-400, the stair to the upper deck is straight and narrow. On the 747-8 it is a curved, sweeping staircase — moved back to the left-hand side after Lufthansa’s order — and it is the first thing many passengers remember about the aircraft.
Space that came from elsewhere
Some of the cabin’s usable floor was recovered rather than added. Crew rest berths and galley storage were moved into the crown space above the passenger cabin, where the air conditioning ducts and wiring run. Freeing that area up put more of the main deck and lower hold back into revenue service.
The upper deck, extended slightly over the 747-400's.Boeing
Optional crew rest berths sit in the crown space above the cabin, freeing main deck floor for seats.Boeing
Frequently asked questions
- What is different about the 747-8 cabin?
- It uses architecture developed for the 787: a sculpted curved ceiling, overhead bins that appear attached to it, windows about 16 percent larger than the 747-400's, and solid-state LED lighting that can be tuned through the flight.
- Is the 747-8 quieter inside than earlier 747s?
- Yes. Boeing described the 747-8 cabin as the quietest it had built, helped by the GEnx engines and by cabin sound insulation. Lufthansa marketed its first-class cabin as the quietest in the world.
