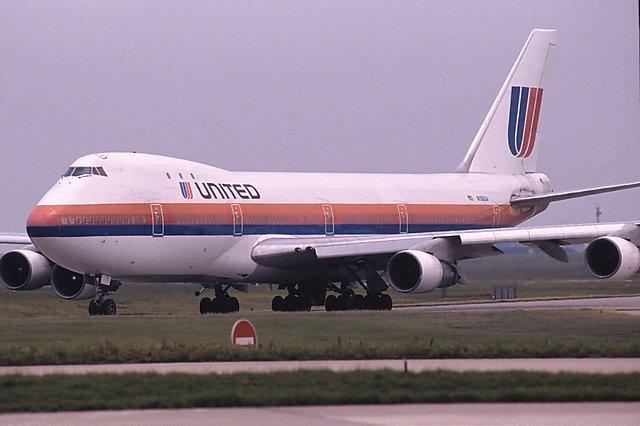

747-100

The first 747-100s were built with six upper-deck windows (three per side) to accommodate upstairs lounge areas. Later, as airlines began to use the upper-deck for premium passenger seating instead of lounge space, Boeing offered a 10-window upper deck as an option. Some -100s were retrofitted with the new configuration.

Developing nation:

United States of America.

Manufacturer/designer:

Boeing Commercial Airplane Company.

Production line:

Everett, WA.

Type aircraft:

Long range high capacity wide body airliner.

First flight:

• 747-100 February 9, 1969, N7470.
• 747-200B October 11, 1970, N611US.
• 747-200F November 30, 1971, N1794B.
• 747-200C March 23, 1973, N747WA.
• 747SP July 4, 1975, N747SP.
• 747-200M November 18, 1974, N8297V.
• 747-300/SR October 5, 1982 N6005C.
• 747-300M February 14, 1983, N4548M.
• 747-400 April 29, 1988, N401PW.
• 747-400M June 30, 1989, N6038E.
• 747-400D March 18, 1991, N60668.
• 747-400F May 4, 1993, N6005C.
• 747-400ER July 31, 2002, N6018N.
• 747-400ERF September 30, 2002, N5017Q.

First delivery:

• 747-100 December 13, 1969 to Pan Am.
• 747-200B January 15, 1971 to KLM.
• 747-200F March 10, 1972 to Lufthansa.
• 747-200C April 30, 1973 to World Airways.
• 747SP March 5, 1976 to Pan Am.
• 747-200M March 7, 1975 to Air Canada.
• 747-300/SR March 1, 1983 to UTA.
• 747-300M March 5 1983 to Swissair.
• 747-400 January 26, 1989 to Northwest Airlines.
• 747-400M September 1, 1989 to KLM.
• 747-400D October 10, 1991 to Japan Air Lines.
• 747-400F October 22, 1993 to Cargolux.
• 747-400ER October 31, 2002 to Qantas.
• 747-400ERF. October 17, 2002 to Air France.

Last delivery:

• 747-100 July 1986 to Japan Air Lines.
• 747-200B December 1990 to USAF.
• 747-200F November 1991 to Nippon Cargo Airways.
• 747-200C September 1988 to Martinair.
• 747SP December 12, 1989 to Abu Dhabi Government (UAE).
• 747-200M December 12, 1989 to Abu Dhabi Government (UAE).
• 747-300/SR October 1988 to Japan Asia.
• 747-300M September 1990 to SABENA.
• 747-400M April 10, 2002 to KLM.
• 747-400D December 1995 to All Nippon Airways.

Boeing 747-100

Cockpit crew:

two pilots and a flight engineer.

Passengers single class:

Passengers two class main deck:

• 32 first class.
• 388 economy class.

Passengers three class main deck:

• 22 first class.
• 84 business class.
• 131 economy class.

Upper deck seating options:

• 15 place lounge.
• 8 first class plus 11 place lounge.
• 16 first class sleeper seats.
• 32 - 45 economy class.

Cabin length:

57,00 m.

Cabin diameter:

6,13 m.

Cabin height:

2,54 m.

Cabin volume:

516 m³.

Baggage compartment:

28,3 m³.

Cargo volume:

• main deck 516 m³.
• under floor 149,96 m³.
• bulk under floor 28,3 m³.
• total load 694 m³.

LD3 Containers in belly:

Standard 2.24m x 3.18m pallets:

• main cargo deck of freighter 28.

Standard 2.24m x 2.99m pallets:

• main cargo deck of freighter 30.

Wing span:

59,64 m.

Wing area:

510,97 m².

Wing sweep:

37.5 degrees.

Fuselage length:

70,66 m.

Fuselage diameter:

6,49 m.

Height:

19,33 m.

Horizontal tail unit:

22,17 m.

Wheelbase:

25,62 m.

Track:

10,36 m.

Engines:

• four Pratt & Whitney JT9D-3A each rated 19.730 kg thrust.
• four Pratt & Whitney JT9D-3AW each rated 19.730 kg thrust.
• four Rolls Royce RB211-524C2 each rated 224,8 kN.

Weight:

• empty: 171.840 Kg.
• max. zero-fuel weight: 247.170 Kg.
• fuel: 181.950 liters.
• max. payload: 76.280 Kg.

Max. take off weight:

340.100 Kg.

Max. landing weight:

265.300 Kg.

Cruise speed:

957 km/h.

Max. speed:

991 km/h.

Landing speed:

259 km/h.

Max. ceiling:

13.716 m.

Range:

9.045 km.

Boeing 747-100 airline operators:

Saudi Arabian Airlines.

• 7 747-168B
• 1 747-1D1

United Parcel Service.

• 3 747-121SF
• 4 747-123SF

Kalitta Air.

• 2 747-122SF
• 1 747-123SF
• 1 747-132SF
• 4 747-146SF

Evergreen International Airlines.

• 2 747-132SF
• 1 747-121SF

Kabo Air.

• 2 747-136

Orient Thai Airlines.

• 2 747-146

General Electric.

• 1 747-121SF

Iran Air.

• 1 747-186B

Logistic Air.

• 1 747-121

NASA.

• 1 747-123

Polar Air Cargo.

• 1 747-123SF

Saha Airline Services.

• 1 747-131SF

Boeing 747-100 military operator:

Iran Air Force.

• 5 747-131SF
• 1 747-131F
